MIB T5140

Available Now
GZ-SPIM51

* A new PC chassis usage experience
* MIB wisely replaces a monitor stand and thus PClizes any monitor and saves space.
* Wide monitor compatibility range
* Wide monitor tilt angle
* Easy monitor angle and height adjustment
* Hinge lock for extra stability
* Pre-designed hinge hole for cable management
* Tool-less installation of MIB and monitor with thumb screws design

Specifications :
Dimensions : 250 x 65 x 445 mm (W x H x D)
Front bezel material : ABS
Color : Black
Body material : 0.6 mm SECC
Net weight : 4.2 kg / 9.26 Ib
5.25" drive bay (External) : 1
3.5" drive bay (External) : 1
3.5" drive bay (Internal) : 1
Form factor : Mini ITX (6.75" x 6.75")
I / O ports : 2 x USB 2.0 / 1 x Audio Set (AC'97/HD)
Power consumption : 60W adapter
LCD monitor support : 19” ~ 23” (3kg ~ 5kg) 10x10cm & 7.5x7.5cm VESA standards

Gigabyte Netbook M1022C

Available Now

* 10.1" LED screen, Intel® Atom™ Processor N280 1.66GHz
* Genuine Windows® XP Home / Windows® 7 Starter
* 10.1" TFT-LCD WSVGA, 1024x600 with LED backlit
* Mobile Intel®945GSE Express Chipset+ ICH7M
* 92% full-sized keyboard
* 3.5G Antenna build-in, 3.5G module supported (Optional)
* 2.5" 9.5mm SATA HDD 5400rpm, 160GB / 250GB
* Smart Manager Intuitional Setting
* Multi-Touch Mousepad
* Battery Check Design
* Easy Upgrade for HDD and Memory

Specifications
CPU : Intel® Atom™ Processor N280 1.66GHz
Operation System : Microsoft® Windows® XP Home / Windows® 7 Starter
Chipset Mobile : Intel® 945GSE Express Chipset+ ICH7M
System Memory (optional): 1GB SO-DIMM*1 (Max 2 GB)
Video Chip : Mobile Intel® 945GSE Express Chipset+ ICH7M
LCD : 10.1"TFT-LCD WSVGA, 1024x600 with LED backlit
HDD (optional) : 2.5" 9.5mm SATA HDD 5400rpm, 160GB / 250GB
I/O Port : USB(2.0)*3, Mic-in, Earphone-out, D-Sub, RJ45, 4-in-1 card reader
(SD/MMC/MS/MS Pro), Docking Port, DC-in
Audio : Speaker 1.5 watt*2, internal mic-in
Webcam : 1.3M pixels webcam
LAN : Ethernet 10/100BASE-T
Wireless LAN : 802.11b/g/n, 802.16 WiMAX(optional)
Battery : Li-ion 4 cells, ~4400mAh Battery
Dimension : 265(W) x 191(D) x 26.5~30.5(H)mm
Weight : 1.26kg (with 4-cell battery)

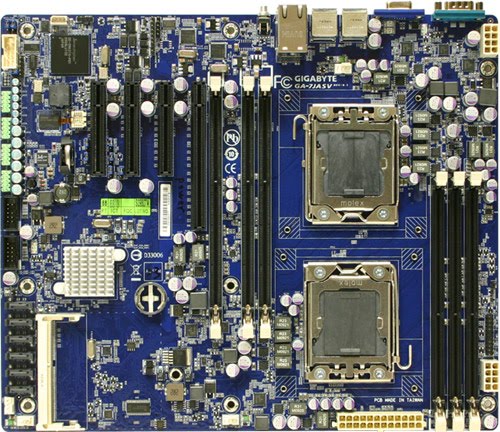

GA-7JASV (1.0)

Server and Storage

1. Based on Intel's Highly Integrated Two-chip Architecture
2. New generation Intel Xeon solution integrated 3 Channel memory controller within the processor and PCIe 2.0. Boost performance and consume less power so customers may get more and pay less in energy costs.
3. Supports optional SAS function thru Gigabyte property SAS upgrade kit.
4. Up to 96GB Registered DDR3 memory, dual Gigabit LAN, and six SATA 3Gbps with RAID 0/ 1/ 5/ 10.
5. Onboard ServerEngines Pilot II for web-based remote management.
6. ATX motherboard is an easy-to-find chassis motherboard for installation.

Specification :
Board Size : ATX (12” x 9.6”)
Processor Supported : Dual Intel Xeon C5500 series Processor
Chipset Description : Intel 3420 PCH
System Memory : 6 DDR3 800/1066/1333 DIMM slots RDIMM/ UDIMM ECC
Integrated Network : Dual Intel 82574L GbE controllers
Integrated Video Controller : Integrated in ServerEngines Pilot II (Matrox 200e)
Integrated SATA Controller : SATA 3Gb/s x 6 ports( ICH10R, LSI S/W RAID 0,1, 10)
Optional Device : - SAS 1.0 X8 ports HW ROC (GC-RLE087)-Add on card
- SAS 1.0 X8 ports SW RAID (GC-RLE086) -Add on card
- SAS 1.0 X4 ports SW RAID ( GC-RLD046)- Mezzanine card
Expansion Slot : - 1 x PCI-e x16(@ Gen 2 x16 bus)
- 1 x PCI-e x8(@ Gen 2 x8 bus)
- 1 x PCI-e x8(@ Gen 2 x4 bus)
- 1 x PCI-e x8(@ Gen 1 x4 bus)
Server Management : ServerEngines Pilot II (IPMI 2.0) +i KVM
Rear I/O Connectors : - 1 x VGA
- 1 x COM
- 4 x USB
- 2 x RJ45
www.gigabyte.com

Gigabyte VGA GV-R597D5-2GD-B

New Product

1. Powered by Radeon HD 5970 GPU
2. Supports PCI Express 2.1
3. Microsoft DirectX 11 and OpenGL 3.1 support
4. Integrated with the first 2GB GDDR5 memory and 256*2-bit memory interface
5. Supports CrossFireX™ ,Avivo™HD and ATI™ Eyefinity technolog
6. Features Dual dual-link DVI-I / Mini Displayport

GA-EX58-EXTREME

Intel® X58 + ICH10R Chipset


1. Supports new generation Intel 32nm 6-core processors
2. Ultra Durable 3 Technology with copper cooled quality for lower working temperature
3. Supports the newest Intel® Core™ i7 processors in socket LGA1366 with QPI 6.4 GT/s
4. Revolution energy saving design with DES Advanced featuring hardware based Dynamic 6-Gear switching
5. Supports 3 channel DDR3 2100+ memory
6. Scalable ability to both 3 way CrossFireX and 3 way SLI support for ultimate graphics performance

7. Advanced 12+2+2 power phase design with VRD 11.1 support
8. New Hybrid Silent-Pipe 2 design provides unequalled heat conductivity
9. Unique hardware control IC to provide more precision voltage control
10. 100% 50,000 hour lifespan Japanese solid capacitors design
11. Onboard Debug LED display simplifies motherboard troubleshooting
12. Patented DualBIOS with dual hardware BIOS protection
13. 2 Gigabit Ethernet LAN with Teaming functionality
14. Supports Dolby Home Theater audio to create a stunning surround sound listening experience
15. Power/reset/Clr CMOS onboard button for easily operation on the workbench
16. Blu-ray playback outputs supported by high quality 106dB SNR ALC889A HD audio.

Gigabyte Leader in USB 3.0 Motherboards

Enable the future SuperSpeed environment today with GIGABYTE


GIGABYTE USB 3.0 motherboards set the new standard in high performance computing by incorporating the very latest high-speed data transfer technologies. Proving once again to be the Leader in Motherboard Innovation, GIGABYTE USB 3.0 motherboards deliver unparalleled performance with onboard integration of the latest SuperSpeed USB 3.0 technologies from NEC Electronics.


The USB 3.0 host controller from NEC Electronics enables a 10x data transfer speed boost over USB 2.0. Adding to this performance boost, USB 3.0 features dual-simplex transfer for simultaneous data transfer from PC to USB device. With this high-speed transfer capability, GIGABYTE USB 3.0 motherboards are the perfect match for future high definition SuperSpeed digital appliances such as digital cameras, digital TVs, DVD recorders and more.

GA-H55-USB3

This boost in data transfer speed will enable unprecedented improvements in the user experience for high-performance consumer electronics products. GIGABYTE is cooperating with other industry leading USB 3.0 device manufactures in ensuring compatibility and functionality of the devices, and welcomes all USB 3.0 device vendors to work with GIGABYTE in developing the SuperSpeed USB 3.0 ecosystem.
